Lessons from the Field: Reconciling Visionary Geometry with Local Construction Constraints

Taiwan sits on the Pacific Ring of Fire, and that single geographical fact outranks every rendering ever produced for the island. Before a cantilever reads as poetry, it has to read as mass, stiffness, and damping. Before a roofline sweeps, it has to shed a typhoon. The Next-Gene 20 brief asked twenty architects to imagine ecological luxury on a hillside; the ground underneath answered back with numbers.

Ring of Fire Ground Rules for a Hillside Villa Cluster

The design envelope for this site was set by two hostile forces working on different timescales. Seismic analysis fixed peak ground acceleration thresholds between 0.32g and 0.40g. Wind engineering demanded resistance to sustained gusts of 60 to 65 meters per second. Neither figure is negotiable by argument, and neither cares what the competition boards promised.

Early on, the engineering team looked at standard high-rise dampening systems — the tuned mass damper logic that works so elegantly in slender towers. It did not survive first contact with the program. The ecological villas are low-rise and sprawling, spread across a slope rather than stacked. Tuned mass dampers need vertical mass and a long natural period to push against; a two-storey villa with a broad footprint offers neither. The team pivoted to deep-pile foundation isolation calibrated to the specific soil composition of the hillside.

That pivot is worth dwelling on, because it illustrates how the typology dictates the structural grammar. A 50-storey tower and a landscape-embedded villa both resist earthquakes, but they do so through entirely different physics. Importing commercial high-rise solutions into luxury residential work on steep terrain produces expensive hardware that does very little. Much of the discipline here echoes performance-based seismic engineering frameworks, where the question shifts from code box-ticking to what the building must still be capable of doing after the shaking stops.

Where the Piles Stop Working — the foundation isolation approach described here is viable exclusively for low-rise structures on bedrock or highly compacted soil profiles. On coastal alluvial plains, the same detail is unsuitable. The thresholds cited throughout this piece belong to one hillside parcel and its soil report; they are a method to copy, not a set of constants to transplant.

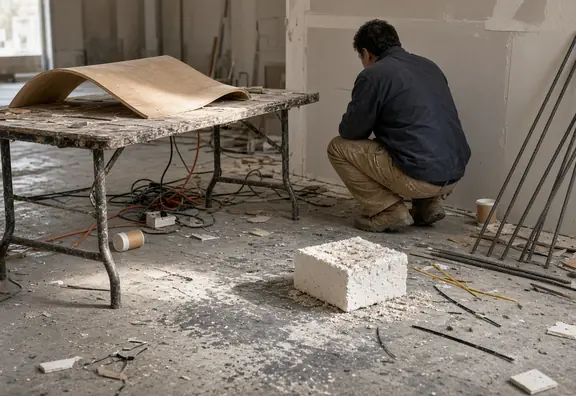

Where NURBS Surfaces Meet Plywood and Rebar

A compound curve costs nothing in Rhino. It costs a great deal in a formwork yard outside Taipei.

The friction between digital model and physical material tends to appear at a specific, measurable moment: the curvature radius. Standard plywood formwork, the default of regional contractors, bends willingly up to a point and then simply refuses, splintering or faceting under its own resistance. On this project the fabrication team mapped the curvature radii of every villa envelope and found the break line. Anything tighter than roughly 1.5 to 1.8 meters could not be delivered with conventional plywood at acceptable tolerance.

The response was to specify CNC-milled high-density polystyrene molds coated in fiberglass for those aggressive zones, derived directly from the stress-point mapping of the compound curves. It is a clean solution with an unglamorous consequence: the fiberglass coating is non-porous, so concrete curing cycles extended by 48 to 72 hours per pour. Multiply that across a cluster of villas and the geometry has quietly rewritten the construction programme.

This is why material tolerance belongs in the schematic phase rather than the shop drawing phase. Designers who defer the question discover it as a change order. Designers who front-load it get to choose which curves are worth the polystyrene premium and which can relax to a radius the local supply chain already handles. The second group keeps its architecture; the first group negotiates it away under deadline pressure.

Radius Before Rendering — run a curvature analysis on the envelope before the design is presented, not after it is approved. Knowing where the plywood-to-polystyrene threshold falls lets the architect spend complexity deliberately, in the three or four places where it actually earns its keep.

Faceting the Roofline Without Losing the Curve

Reinforcement is where organic form meets its most stubborn opponent. Rebar bends, but only within limits that local fabricators and local codes agree on, and a continuously varying NURBS roofline does not respect those limits.

The structural engineers approached it by segmentation. They mapped the continuous rooflines against rebar bending constraints and broke the digital curves into discrete planar facets, each short enough to be reinforced with straight, standard rebar cages — segment lengths restricted to 3.0 to 4.5 meters. Each facet is conventional. The assembly of facets approximates the curve. The code officer sees a sequence of legible, calculable planes; the visitor sees a sweep.

The reconciliation happens in the second layer. A secondary architectural shell, offset 150 to 200 millimeters from the primary load-bearing structure, restores the smooth geometry the architects drew. That gap is where the project hides its honesty: heavy reinforcement, anchors, service runs and tolerance all live inside the void, while the visible surface keeps the lightness the original concept promised.

Purists will call this a deception. The more useful reading is that the building now has two jobs, cleanly separated — one layer survives the earthquake, the other carries the idea. Each can be detailed and tested on its own terms, and the safety case for the primary structure never has to be argued through a sculptural surface.

Rhino In, Local BIM Out: The Translation Loop

International design files do not become Taiwanese construction documents by export. They become them by rebuild.

The project management team instituted a deliberately slow protocol: the international architects submit their primary Rhino models, and local engineers reconstruct them entirely in localized BIM software. Nothing is imported wholesale. The duplication is the point — it forces a manual review of every structural node against Taiwanese building code before a single shop drawing is issued. Where the translation stalls, the code conflict has been found.

The cost is time. Each BIM reconciliation cycle runs 14 to 21 days per design iteration, with clash detection tolerances held to a strict 5 to 8 millimeter threshold. On paper that looks like bureaucratic drag. In practice it is the cheapest week a complex-geometry project will ever buy, because the alternative is discovering a non-compliant node after the formwork has been milled.

Within each cycle, the engineers return substitutions rather than refusals: a different anchor type, a shifted bearing point, a facet count adjusted by one. The architect keeps veto power over visual intent; the engineer keeps veto power over load paths. The iteration ends when neither has to lose.

Which leaves the question the whole exercise circles. When a hillside, a soil report and a rebar bending limit force the redesign of a visionary form — has the architecture been diluted, or has it finally been grounded in the only reality that will still be standing in fifty years?
